Ptex

Ptex is a texture mapping system developed by Disney Animation Studios for production quality rendering.

  • Ptex doesn't require UV assignments. Ptex applies a separate image to each face of a polygon mesh.

  • The Ptex file format can efficiently store hundreds of thousands of texture images in a single file.

  • The Ptex API provides file reading and writing, and high-quality filtering for rendering.

Requirements

Ptex can only be applied to Quad PolyMesh objects. Any PolyMesh can be converted to a Quad PolyMesh by applying a MeshSmooth modifier, but for better results it is rocommended to model using only Quad faces.

Example

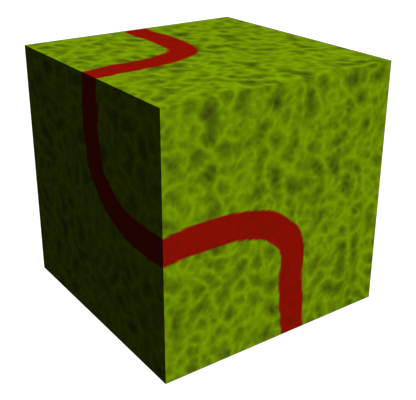

The following cube has been textured using a single Ptex file:

The Ptex file has one image per face, and an adjacency table that allows the filter to render textures across multiple faces:


Top

Front

Right

Left

Back

Bottom
Adjacency Table:
Top: Front - Right - Back - Left
Front: Right - Top - Left - Bottom
Right: Back - Top - Front - Bottom
Back: Left - Top - Right - Bottom
Left: Front - Top - Back - Bottom
Bottom: Left - Back - Right - Front

Meshes that use a Ptex file can be subdivided without loosing it's Ptex information:
